Description

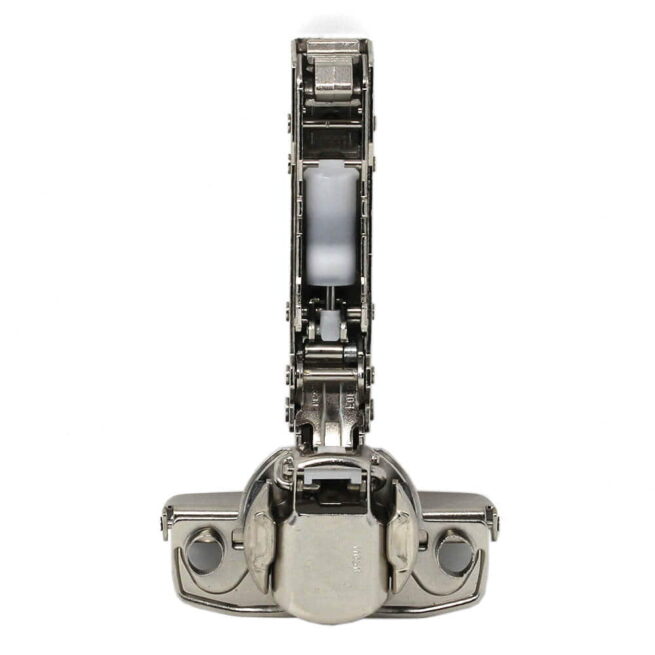

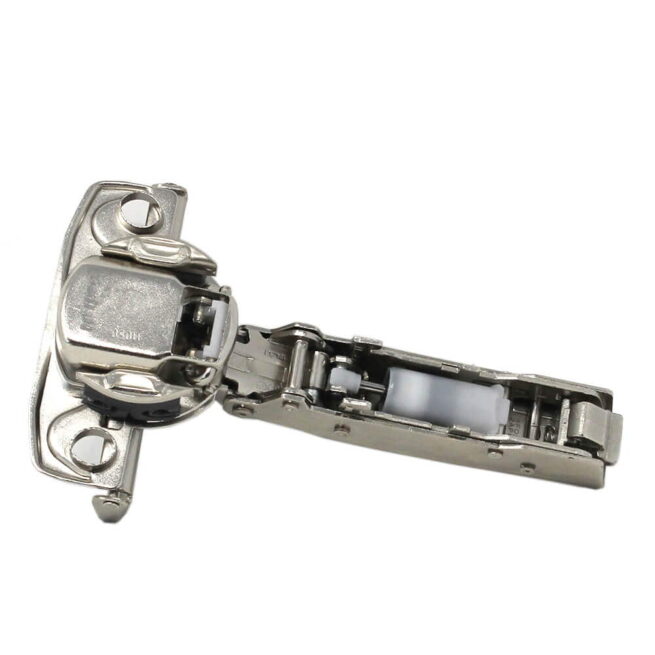

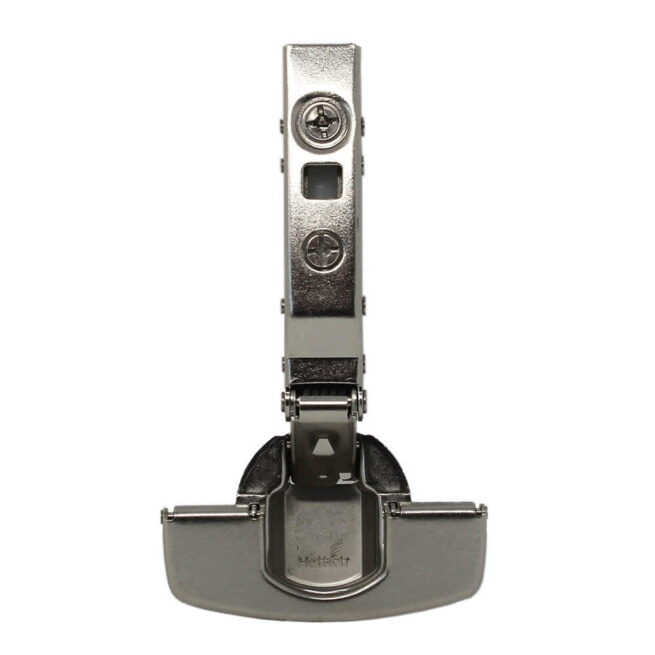

- Sensys 110° hinge
- With integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110 °
- For door thickness 15 – 24 mm
- Door mounting option : Overlay
- Drilling pattern TH 52 x 5.5 mm, TS 48 x 6 mm
- Cup depth 12.8 mm
- Cup Diameter : 38mm
- Cup version THS 55
- Installation Fix fast assembly
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- Steel nickel plated
- Door Type : Standard door / wooden door, Wood framed door (profile width from 50 mm)
- Mounting Hole Diameter : 10 mm Ø
We stock a full range of the most common Hettich Hinges at our showroom in Chenies. Please contact us if you are not sure which you require.
