Description
| Design | 90° construction |
| Door type | Rebated door / mitred door Standard door / wooden door Thick door Aluminium framed door (profile width from 50 mm) Wood framed door (profile width from 50 mm) |
| User friendly features | with integrated Silent System |
| Door mounting option | half overlay |
| Opening angle | 165° |
| Min. door thickness | 15 mm |
| Max. door thickness | 32 mm |
| Cup version | TH 52 |
| Base | 3 mm |
| Cup diameter | 35 mm |
| Type of installation | for screwing on |
| Cup depth | 11.6 mm |
| Hinge surface finish | Steel/nickel plated die-cast zinc |

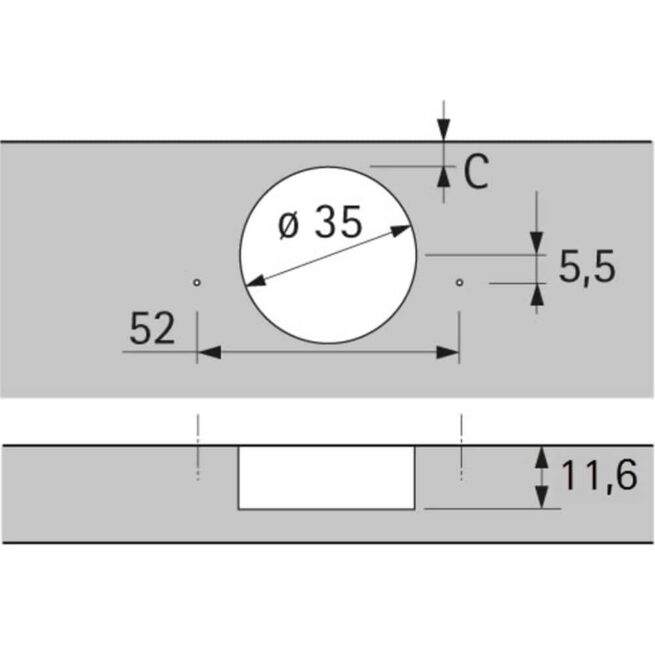

| Drilling pattern | TH 52 x 5,5 mm |
| Diameter of mounting hole | Centre punch Predrilled hole 2.5 mm Ø max. |
| Integrated overlay adjustment | +2 mm / -2 mm |
| Integrated depth adjustment | +3 mm / -2 mm |
| Mounting hole | – |
| Stay closed function | Yes |
We stock a full range of the most common Hettich Hinges at our showroom in Chenies. Please contact us if you are not sure which you require.
