Description
The Fenwick is wrapped in solid, uni-colour, Legno Grain embossed vinyl which provides extra durability. The base door material is MDF core and the edge is 2mm ABS end caps and chamfered edges.
Six year warranty.
Fenwick Kitchen Doors are supplied 5 piece as standard. The centre panel grain direction will always be vertical. Doors below 246mm width are a single wrapped profile only.
Fenwick Kitchen Drawers between 100-215mm are supplied as single piece flat panels. The standard drawer heights are 115, 140, 175 and 215mm high, made to measure drawers are cut from the next nearest profile size and bottom cut and edged.
Pan drawers are between 220mm – 355mm and are supplied as five piece.

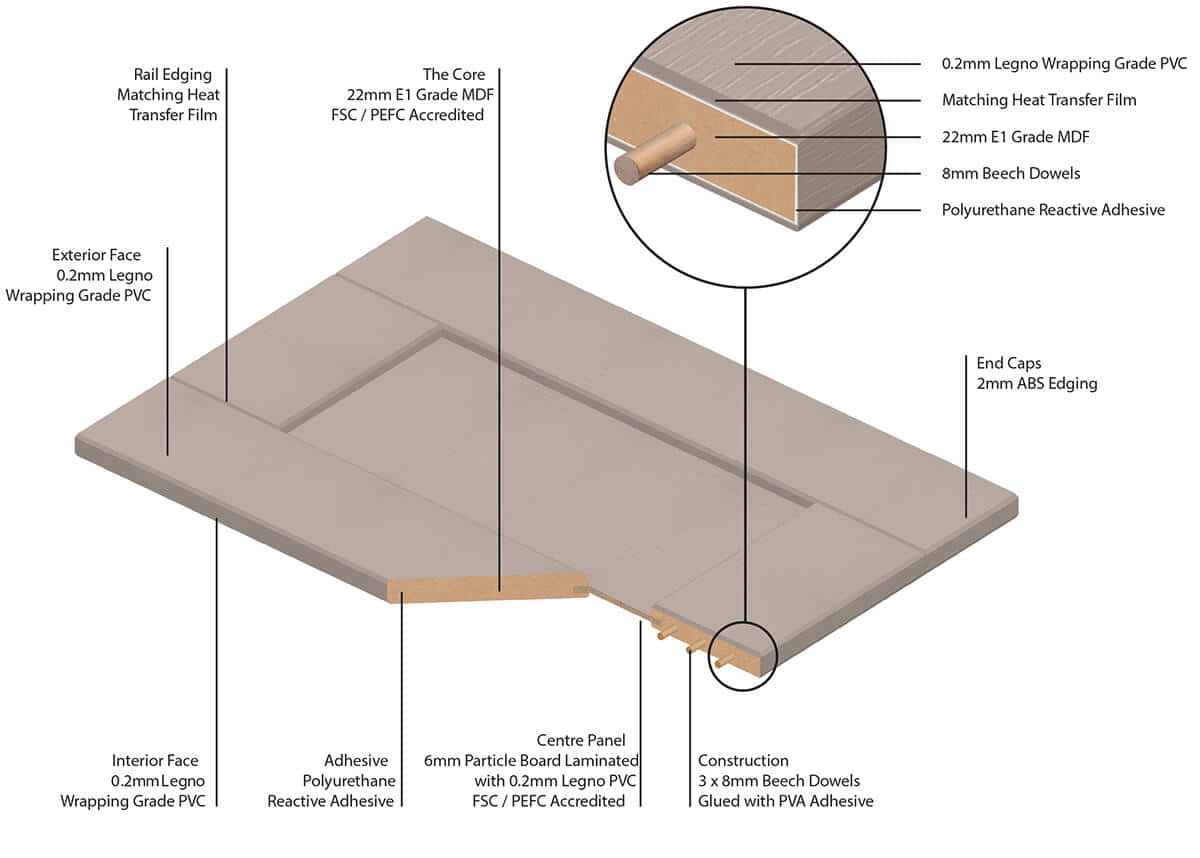

Fenwick Door Construction

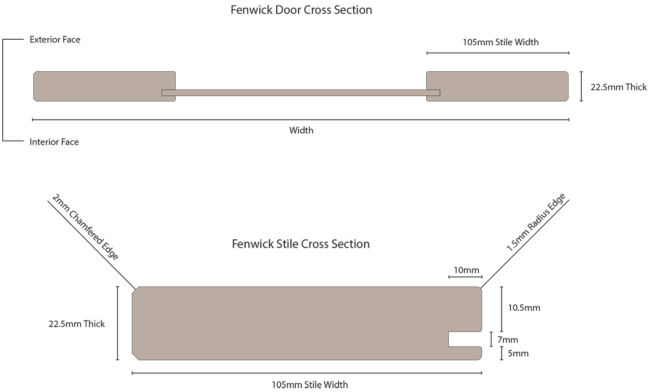

Below is a technical drawing of how the Fenwick door is constructed. It can be seen how the five pieces slot together to make the door.
